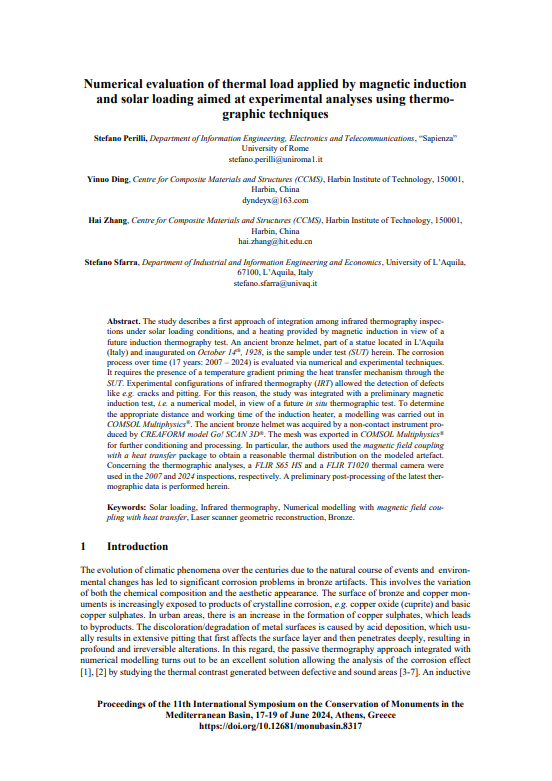

Numerical evaluation of thermal load applied by magnetic induction and solar loading aimed at experimental analyses using thermo-graphic techniques

PDF
Published: Jun 19, 2024
DOI: https://doi.org/10.12681/monubasin.8317
Keywords:
Solar loading Infrared thermography Numerical modelling with magnetic field coupling with heat transfer Laser scanner geometric reconstruction Bronze
Stefano Perilli
Yinuo Ding
Hai Zhang
Stefano Sfarra
Abstract

The study describes a first approach of integration among infrared thermography inspections under solar loading conditions, and a heating provided by magnetic induction in view of a future induction thermography test. An ancient bronze helmet, part of a statue located in L'Aquila (Italy) and inaugurated on October 14th, 1928, is the sample under test (SUT) herein. The corrosion process over time (17 years: 2007 – 2024) is evaluated via numerical and experimental techniques. It requires the presence of a temperature gradient priming the heat transfer mechanism through the SUT. Experimental configurations of infrared thermography (IRT) allowed the detection of defects like e.g. cracks and pitting. For this reason, the study was integrated with a preliminary magnetic induction test, i.e. a numerical model, in view of a future in situ thermographic test. To determine the appropriate distance and working time of the induction heater, a modelling was carried out in COMSOL Multiphysics®. The ancient bronze helmet was acquired by a non-contact instrument produced by CREAFORM model Go! SCAN 3D®. The mesh was exported in COMSOL Multiphysics® for further conditioning and processing. In particular, the authors used the magnetic field coupling with a heat transfer package to obtain a reasonable thermal distribution on the modeled artefact. Concerning the thermographic analyses, a FLIR S65 HS and a FLIR T1020 thermal camera were used in the 2007 and 2024 inspections, respectively. A preliminary post-processing of the latest thermographic data is performed herein.

Article Details
  • Section
  • Part IV - Methodologies for Characterization and Damage Assessment

You are free to:

  1. Share — copy and redistribute the material in any medium or format
  2. The licensor cannot revoke these freedoms as long as you follow the license terms.

Under the following terms:

  1. Attribution — You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
  2. NonCommercial — You may not use the material for commercial purposes.
  3. NoDerivatives — If you remix, transform, or build upon the material, you may not distribute the modified material.
  4. No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
Author Biographies
Stefano Perilli

Department of Information Engineering, Electronics and Telecommunications, “Sapienza” University of Rome

Yinuo Ding

Centre for Composite Materials and Structures (CCMS), Harbin Institute of Technology, 150001, Harbin, China

Hai Zhang

Centre for Composite Materials and Structures (CCMS), Harbin Institute of Technology, 150001, Harbin, China

Stefano Sfarra

Department of Industrial and Information Engineering and Economics, University of L’Aquila, 67100, L’Aquila, Italy

References
P.A. Schweitzer, Corrosion of Linings and Coatings: Cathodic and Inhibitor Protection and Corrosion Monitoring, Corrosion Engineering Handbook, 2nd Edition, Marcel Dekker, New York (2006).
A. Lins and T. Power, “The Corrosion of Bronze Monuments in Polluted Urban Sites: A Report on the Stability of Copper Mineral Species at Different pH Levels”, Ancient & Historic METALS – Conservation and scientific research, 119-121 (1991).
M.P. Vieira de Souza, F. López, X. Maldague, “Corrosion under insulation mitigation by passive multivar-iate thermography”, Quantitative InfraRed Thermography Journal (2024) DOI: 10.1080/17686733.2024.2305917.
B. Oswald-Tranta, A. Hackl, P. Lopez de Uralde Olavera, E. Gorostegui-Colinas & A. Rosell, “Calculating probability of detection of short surface cracks using inductive thermography”, Quantitative InfraRed Thermography Journal, Vol. 21, No. 2 (2024), pp. 82-101 DOI: 10.1080/17686733.2022.2152259.
D. Ambrosini, A. Paoletti, D. Paoletti, S. Sfarra, “NDT methods in artwork corrosion monitoring”, Pro-ceedings of SPIE, (2007), Volume 6618, Article number 661817, O3A Optics for Arts, Architecture and Archaeology, DOI: 10.1117/12.725556.
X.P.V. Maldague, “Theory and practice of infrared technology for nondestructive testing”, Wiley, New York (2001).
G. Washer, R. Fenwick, N. Bolleni “Effects of solar loading on infrared imaging of subsurface features in concrete”, Journal of Bridge Engineering, Vol. 15, No. 4 (2010), pp. 384-390 DOI: 10.1061/(ASCE)BE.1943-5592.000011.
J. Yström, “Solving Larger Models in COMSOL Multiphysics®”, COMSOL webinar, Boston. https://www.comsol.com/video/solving-larger-models-in-comsol-multiphysics. Accessed on 10 April 2024.
N. Orazi, “The study of artistic bronzes by infrared thermography: A review”, Journal of Cultural Heritage, Vol. 42 (2020), pp. 280-289 DOI: 10.1016/j.culher.2019.08.005.
B.J. Monaghan, J.G.J. Neale, L.A. Chapman, “Some thermal properties of a copper-tin alloy”, Interna-tional Journal of Thermophysics, Vol. 20, No. 4 (1999), pp. 1051-1060 DOI: 10.1023/A:1022694518254.
http://www.meteoam.it. Accessed on 25 February 2024.
J.R. Cardoso, “Electromagnetics through the Finite Element Method – A simplified approach using the Maxwell’s Equations”, 1st Edition, CRC Press, Boca Raton, (2017) DOI: 10.1201/9781315366777.
